Power Factor LF = Cabinet Height KH(mm) x Door Weight including double handle weight(kg)
Product Information

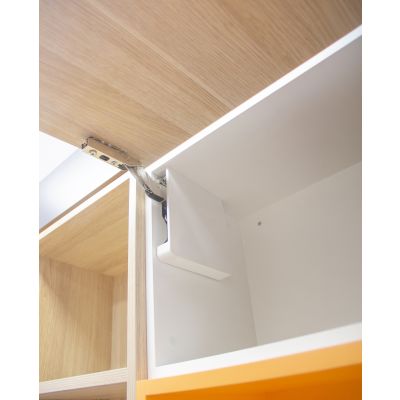

The DTC Top Stay SQ lifting system lifts the single door upwards making it suitable for wall cabinets as well as high cabinets.
Power Factor LF = Cabinet Height KH(mm) x Door Weight including double handle weight(kg)
Note: The power factor LF and the door weight can be increased by 50% when a third lift mechanism is used
| Item No. | Description | Door Weight kg | Cabinet Height mm | Cabinet Width mm | Power Factor |
| SBS101-SQBMW | Medium - Left/Right Arms Kit | 3.27 - 3.66 | 250-500 | up to 1200 | 960 - 2350 |
| SBS101-SQBHW | Heavy - Left/Right Arms Kit | 3.27 - 4.95 | 250-500 | up to 1200 | 1600 - 3600 |
Kit includes:
- 1x Lift mechanism set
- 1x Single caps set
- 1x Front fixing brackets set
- 2x Decoration cover for hinge arm
- 6x Wooden screw ø4 x 38mm
- 4x Wooden screw ø4 x 16mm
Application:
- Kitchen
- Living room
- Office
- Bathroom
Key Features:
- Opening Angle 107°
- Silent and smooth closing
- Easy to open and stays at any desired position
- Adjustable soft-closing speed
- Adjustable opening and hovering forces
- Stylish design with single and dual-colour cover caps
- Snap-fit mechanism makes installation and dismantling very easy
- The 3D adjustable door panel can provide an ideal opening and closing effect
