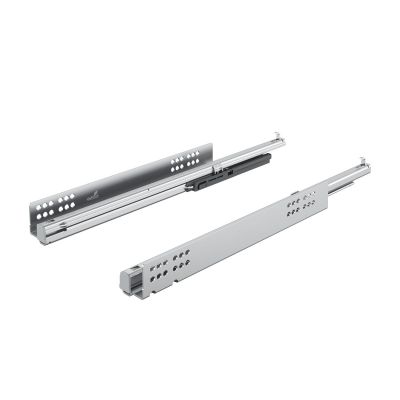

Hettich Quadro V6 30kg Undermount Soft Closing Slide Set (LH+RH and Clips included - For Timber)
SKU
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
Product Information
- Slide on installation with catches and tool-less height adjustment
- Integrated Silent System
- Optional: catch and plug for pull-out shelves
- Optional: Pull-out shelf locating catch
- Suitable for drawers with a side profile thickness of up to 16 mm
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Load capacity to EN 15338, Level 3
- Galvanised steel
Important advice:
- Using catches/plugs for pull-out shelves reduces the length of the pull-out shelf by 12 mm (nominal length NL - 12 mm)
| Hettich Quadro V6 EB20 30kg Undermount Soft Closing Slide | |
| Nominal Depth | 300/350/400/450/500/550/600mm |
| Mounting Side | Left or Right |
| Type of Runner | Concealed runner |
| Type of Drawer Runner | Full Extension runner |
| Type of Installation | Slide on installation |
| Installed width (side profile thickness) | EB 20 (drawer side profile thickness ≤ 16mm) |
| Load Class | 30kg |
| Load Capacity | 25kg |
| User Friendly Features | Silent System |
