Hettich Adjustment Fitting, Plastic

Product Information

• For straightening distorted furniture doors
• Can also be used as a precautionary measure to prevent doors from warping
• For door / front panel thicknesses from 16 mm
• Maximum door / front panel height 2600 mm
• Installing the fitting is simple and straight forward: a pair of threaded rods, one with a right-hand thread and one with a left-hand thread, are fed into a clamping sleeve
• The threaded rods are each additionally supported in a housing that slots into a 35 mm drilling where it is screwed into place
• Turning the clamping sleeve produces tensile or compressive force that corrects door warping or bowing
• The housing, clamping sleeve and threaded rods are covered to prevent damage to wardrobe and laundry
• The adjustment fitting can also be used horizontally
• It is recommended that 2 vertical adjustment fittings are installed near the outer edge. On large, wide doors, 2 horizontal fittings can be used instead or in addition
• 2 adjustment fitting sets are required per door

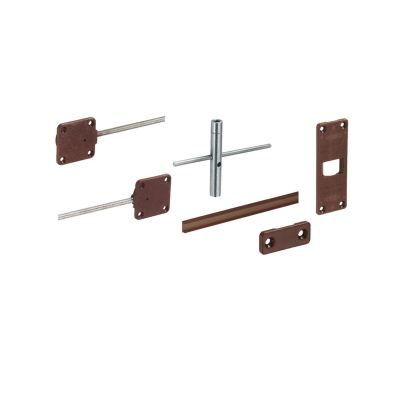

Set comprises:

• 1 housing with right-hand threaded rod
• 1 housing with left-hand threaded rod
• 1 clamping sleeve
• 1 plastic cover plate
• 2 plastic cover strips
• 2 retainers for cover strips
