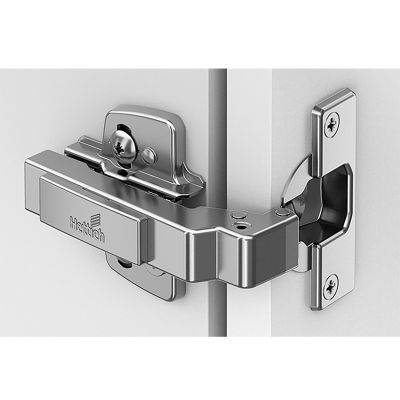

Hettich Intermat 9936 95° Screw on Door Hinge Inset
SKU
HH70-095-77708
KEYS
⚠ Low Stock
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
Product Information
- Intermat angle hinge W90
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
Technical details
| Design | Corner cabinet 90° (W90) |
| Door type | Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm) |
| User friendly features | without integrated silent system |
| Door mounting option | inset |
| Opening angle | 95 ° |
| Min. door thickness | 14 mm |
| Max. door thickness | 28 mm |
| Cup version | TH 42 |
| Base | 5 mm |
| Cup diameter | 35 mm |
| Cup depth | 10.5 mm |
| Type of installation | for screwing on |
| Hinge surface finish | steel / die-cast zinc nickel plated |
| Drilling pattern | TH 52 x 5,5 mm |
| Diameter of mounting hole | Centre punch Predrilled hole 2.5 mm Ø max. |
| Integrated overlay adjustment | +2 mm / -2 mm |
| Integrated depth adjustment | +2 mm / -2 mm |
