Hettich LegaDrive Systems Desk Support Frame Set - Silver
SKU
GIF510-9193251
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.

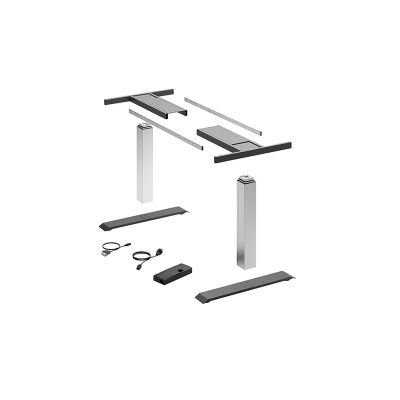

Set comprises:
- 2 LegaDrive electrically telescoping lifting columns
- 2 foot extensions, 720 mm
- 1 sets of width adjustable desk top support frames
- 1 electronic control unit
- 1 EU mains power connection cable, length 3000 mm
- 1 Basic handset
- Installation material
- Installation instructions
Product Information
- For variable desk top sizes:
- depth 800 - 1000 mm
- width 1200 - 2000 mm - Desk top support frames adjustable in width in increments of 50 mm
- Power assisted height adjustment from 620 - 1295 mm
- Lifting range 675 mm
- Max. lifting capacity 120 kg with even desk loading
(lifting capacity = load capacity + desk top with desk top support) - Height adjustment with soft start
- Nominal voltage 230 V / 50 Hz
- Low energy consumption (standby 0.3 W max.)
- Speed 40 mm/s
- With collision detection (no personal protection)
Technical details
| Colour | silver graphite grey |
| Design | Support frame components graphite grey, powder coated lifting columns silver anodised aluminium |
| Load capacity kg | 120 kg |
| Finish | anodised powder coated |
| Height adjustment | power assisted |
| Variants | All-inclusive sets |
| Height | 620 - 1295 mm |
| For desk top width | 1200 - 2000 mm |
| For desk top depth | 800 - 1000 mm |
