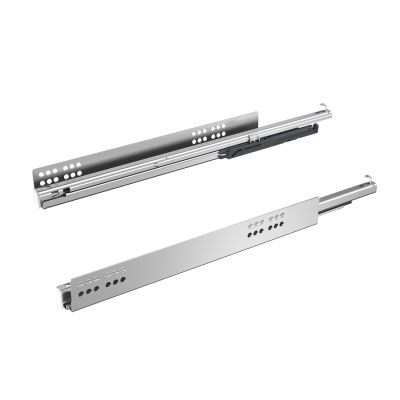

Hettich Quadro V6 30kg Push To Open Slide (For Innotech Atira)
SKU
Prices shown are Retail (RRP) — trade pricing is available once you're signed in. Sign in as a trade customer Register for a trade account
Recommended
 |
|||
| Hettich 2000mm Quadro Synchronisation Bar |
Product Information
- With integrated Push to open drawer opening system
- Load capacity to EN 15338 Level 3
- Slide on installation
- Galvanised steel
- Used for Innotech Atira Drawers
Technical details
| Load capacity kg | 22 kg |
| Installed width EB | 12.5 |
| Hole spacing b1 | 160 mm |
| Installed width / cabinet body side thickness | EB 12.5 (cabinet body side thickness 16 mm) |
| Nominal length | 260 mm |
| Mounting side | left/right |
| Load class | 30 kg |
| Type of runner | Concealed runner |
| Type of drawer runner | Full extension runner |
| User friendly features | Push to open |
| Components | Drawer runners |
| For cabinet body side thickness KD | 16 mm |
