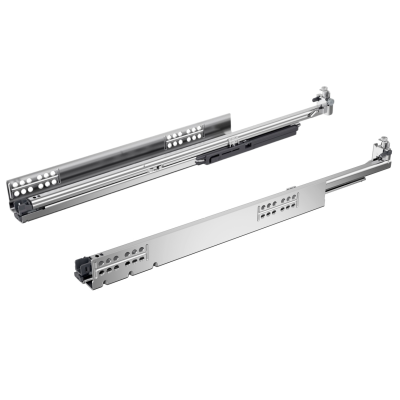

Hettich Quadro V6 5D EB21 30kg S/C Undermount Set (LH+RH and Clips included - For Timber)
SKU
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
Product Information
- Slide on installation with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment
- Integrated Silent System
- Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm
- Optional: Push to open Silent opening system
- Optional: synchronisation / multi synchronisation for Push to open Silent
- Optional: pull-out shelf support / pull-out shelf locating catch
- Load classes XS (10 kg) / M (30 kg)
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Suitable for drawers with a side profile thickness of up to 16 mm
- Load capacity to EN 15338, Level 3
- Galvanised steel
