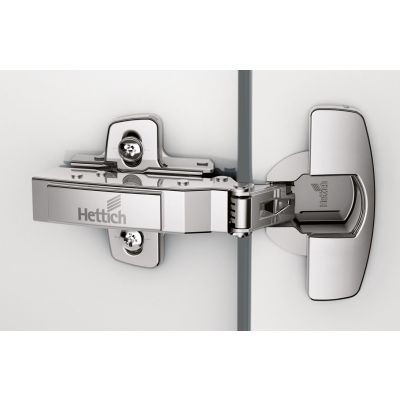

Hettich Sensys 110° Fix Fast Hinge - Full Overlay (Standard Cabinet - Blum Pattern Compatible)
SKU
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
Now packaged in boxes of 50 (previous code: HH60-110-9071238).
- Sensys 110° hinge
- PU: 50 ea.
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 - 24 mm
- Door mounting option overlay
- Drilling pattern TB 45 x 9,5 mm
- Cup depth 12.8 mm
- Installation Fix fast assembly
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- Steel nickel plated
Recommmended
 |
 |
||
| Hettich Sensys Mounting Plate | Hettich Sensys Cross Mounting Plate with Height Adjustment | ||
|
Optional Accessories |
|||
 |
 |
 |
|
| Hettich Sensys Hinge Cup Cover Cap Nickel Plated | Hettich Sensys Hinge Arm Cover Cap Nickel Plated | Hettich Opening Angle Limiter 110° to 85° |
