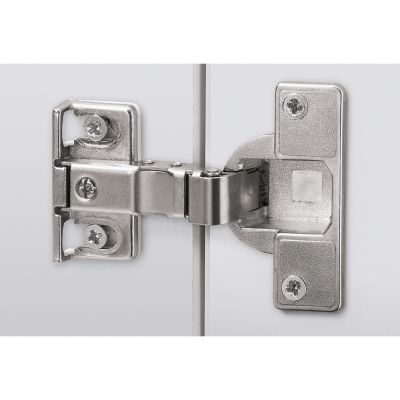

Hettich Special Short Hinge Protrusion for Refrigerator
SKU
HH80-582-72134
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
Product Information
- Special hinge with short hinge protrusion for refrigerator surrounds
- PU: 10 ea.
- Cup diameter 35 mm
- Cup depth 12.8 mm
- With stay closed function
- Including mounting plate and distance plate (distance = 3 mm) for overlays of 13 - 18 mm
- Integrated + 1 mm / - 1 mm overlay adjustment
- Integrated depth adjustment + 3 mm / - 3 mm
- Hinge arm material: steel, nickel plated
- Hinge cup material: nickel plated die-cast zinc
- Distance plate material: plastic, white
| Mounting plate with plastic distance plate = 3 mm distance | Mounting plate without plastic distance plate = 0 mm distance | ||
| Dimension C mm | Overlay mm | Dimension C mm | Overlay mm |
| 3.0 | 13.0 | 3.0 | 16.0 |
| 3.5 | 13.5 | 3.5 | 16.5 |
| 4.0 | 14.0 | 4.0 | 17.0 |
| 4.5 | 14.5 | 4.5 | 17.5 |
| 5.0 | 15.0 | 5.0 | 18.0 |
