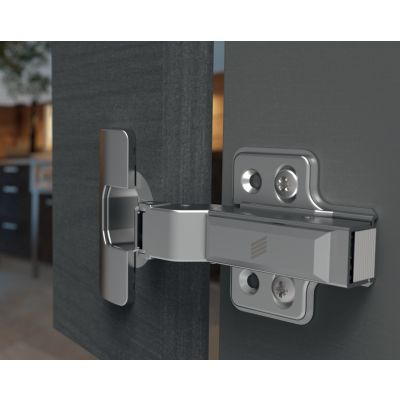

Hettich Veosys 105° Screw On Stainless Steel Hinge - (Standard Cabinet Outdoor Use)
SKU
You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.
The corrosion proof all rounder for indoors and out
Its stainless steel finish makes the Veosys hinge from Hettich a robust all rounder. Not affected by temperature fluctuations and moisture, it's the perfect choice for all sorts of applications. Whether outdoors, in spa centres, gyms or laboratories and hospitals – Veosys comes with tested resistance to corrosion. Integrated Silent System never fails either at low or high outdoor temperatures. And with its uniquely wide self closing angle of 35°, Veosys closes doors almost by itself.
Product Description
- Concealed hinge with clip on installation and integrated Silent System
- PU: 200 ea.
- Quality classification under EN 15570, Level 2
- Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
- For door thickness of 14 - 22mm
- Cup diameter 35mm
- Cup depth 11.5 mm
- Integrated overlay adjustment + 2.5 mm / - 2.5 mm
- Integrated depth adjustment + 2 mm / - 1.5 mm
- Height adjustment at mounting plate
- Stainless steel S 304 grade
Recommended
Hettich Veosys Cross Plate Screw On |
Accessories

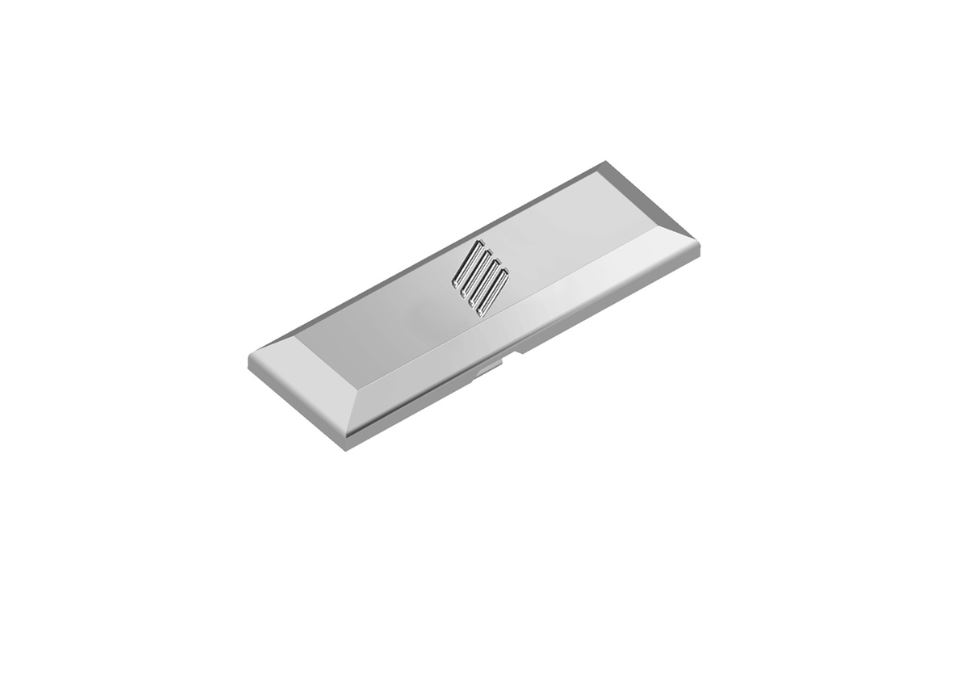

Hettich Cover Cap for Veosys Hinge Arm | Hettich cover cap for Veosys hinge arm, embossed with Hettich logo |
