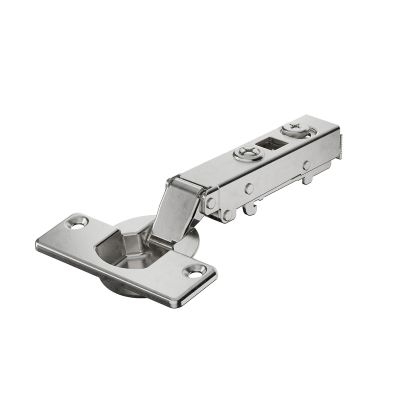

Hettich Veosys Screw On 100° Stainless Steel Hinge - (Thin Door)

main product photo
SKU

You must be signed in to access pricing and add to cart. Sign here or register for a trade account here.

The corrosion proof all rounder for indoors and out

Its stainless steel finish makes the Veosys hinge from Hettich a robust all rounder. Not affected by temperature fluctuations and moisture, it's the perfect choice for all sorts of applications. Whether outdoors, in spa centres, gyms or laboratories and hospitals – Veosys comes with tested resistance to corrosion. Integrated Silent System never fails either at low or high outdoor temperatures. And with its uniquely wide self closing angle of 35°, Veosys closes doors almost by itself.

Defies damp, the cold or heat
The Veosys stainless steel hinge is highly resistant to corrosion.

Benefit from thermal stability
Whether camping in winter or barbecuing in midsummer – you can always rely on the integrated Silent System.

Install the more efficient way
No adjustment necessary: doors both large and small always close gently and reliably.


Product Description

  • Concealed hinge with clip on installation and integrated Silent System
  • Quality classification under EN 15570, Level 2
  • Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670
  • For door thickness of 12 - 22 mm
  • Cup diameter 35 mm
  • Cup depth 10 mm
  • Integrated overlay adjustment + 2.5 mm / - 2.5 mm
  • Integrated depth adjustment + 2 mm / - 1.5 mm
  • Height adjustment at mounting plate
  • Stainless steel


Recommended


Hettich Veosys Cross Plate Screw On



Accessories


Hettich Cover Cap for Veosys Hinge Arm Hettich cover cap for Veosys hinge arm, embossed with Hettich logo
